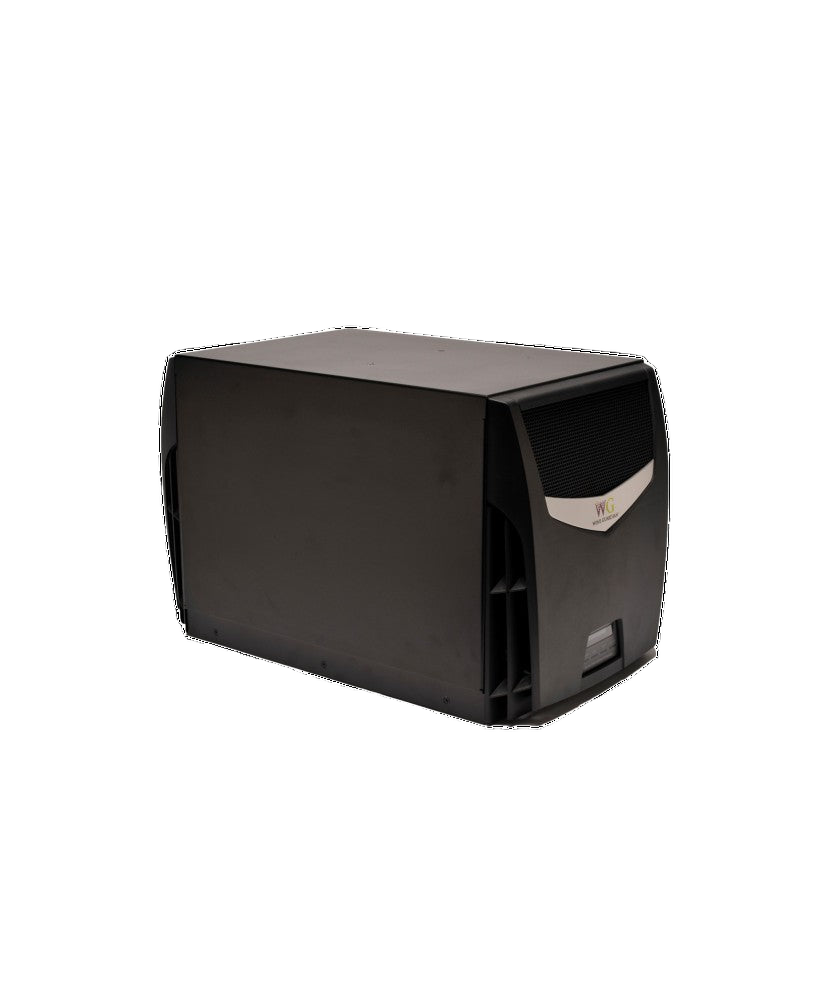

Wine Guardian - Through-the-Wall Compressor 1100 BTU/h| Heating Element

Type: Cooling Unit Brand: Wine Guardian Model: TTW01B (99H0240-12)
$6,825.00

Cool and Protect Your Wine Cellar During Colder Periods

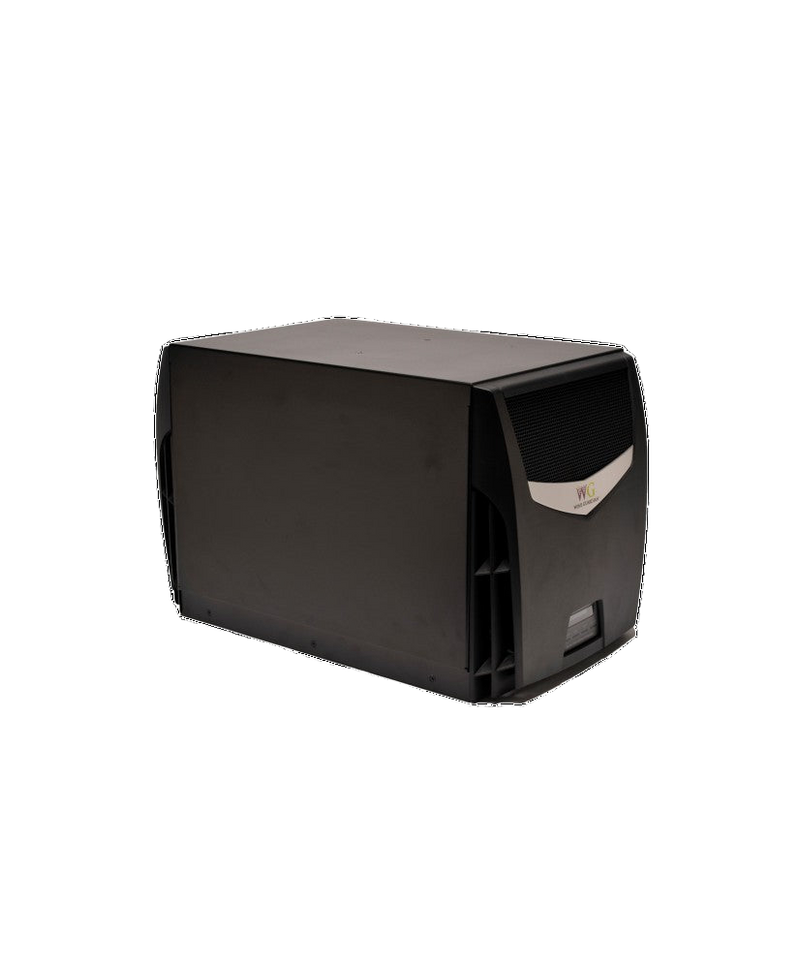

The Wine Guardian TTW009H is a self-contained through-the-wall cooling unit equipped with an integrated 500 W heater, designed to maintain a stable temperature in small residential wine cellars exposed to colder ambient conditions.


WHY CHOOSE THE WINE GUARDIAN TTW009H THROUGH-THE-WALL UNIT WITH HEAT?

  • Self-contained cooling unit designed for installation through an interior wall
  • Designed for small residential wine cellars
  • Nominal cooling capacity of approximately 1,130 BTU/h
  • Suitable for enclosed wine cellars of up to approximately 600 cubic feet depending on project conditions
  • Integrated 500 W electric heater
  • Helps protect the wine cellar when ambient temperatures become too cold
  • Thermal-overload protection device
  • Integrated controls automatically activating cooling or heating as required
  • Operates in either cooling or heating mode according to cellar conditions
  • Straightforward installation requiring no outdoor condenser
  • No refrigerant lines required between separate system components
  • May be installed without a specialized contractor when project conditions permit

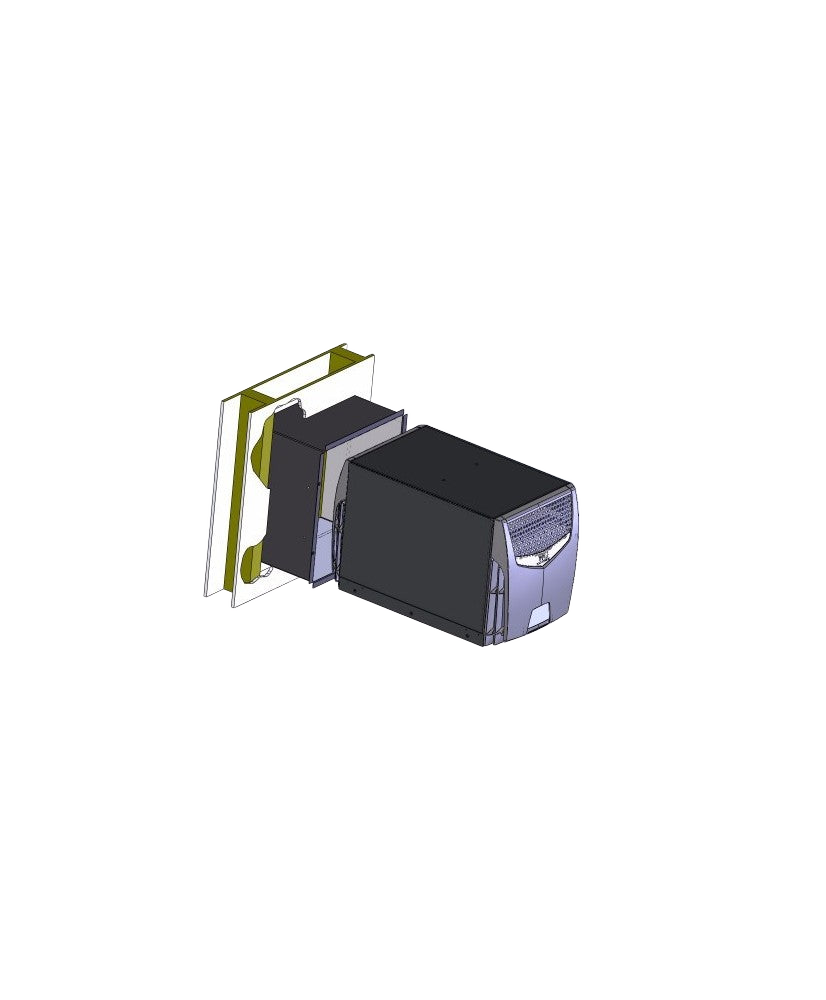

  • EasyMount wall bracket and one-piece support frame

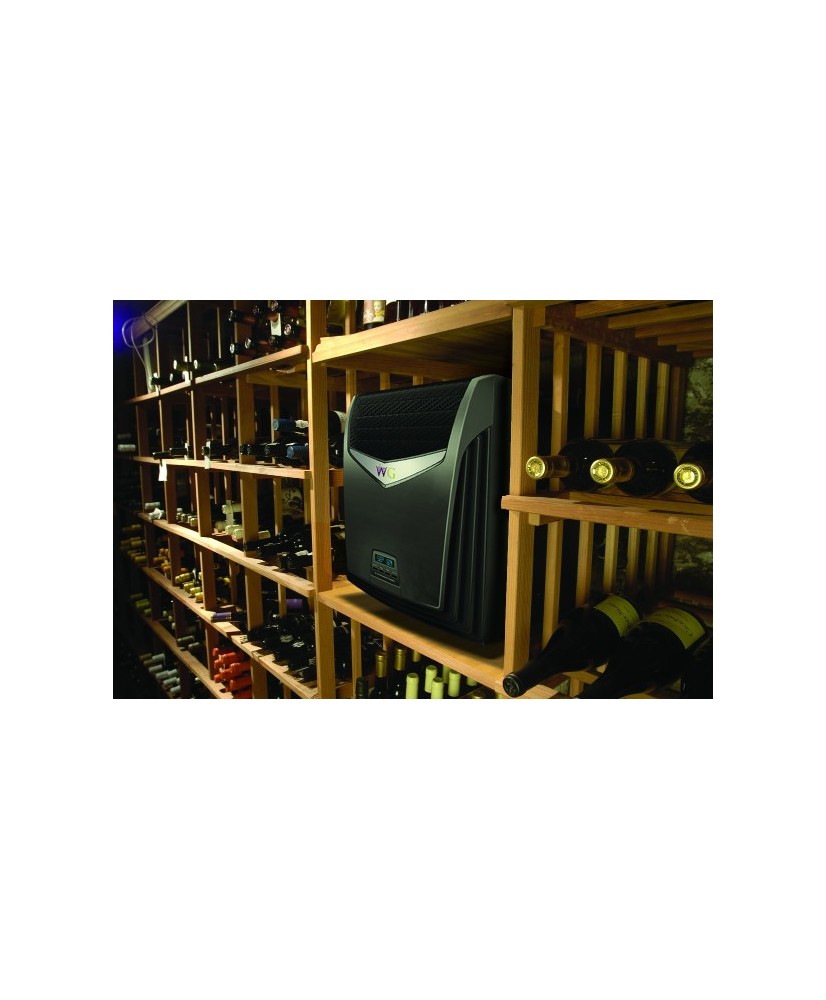

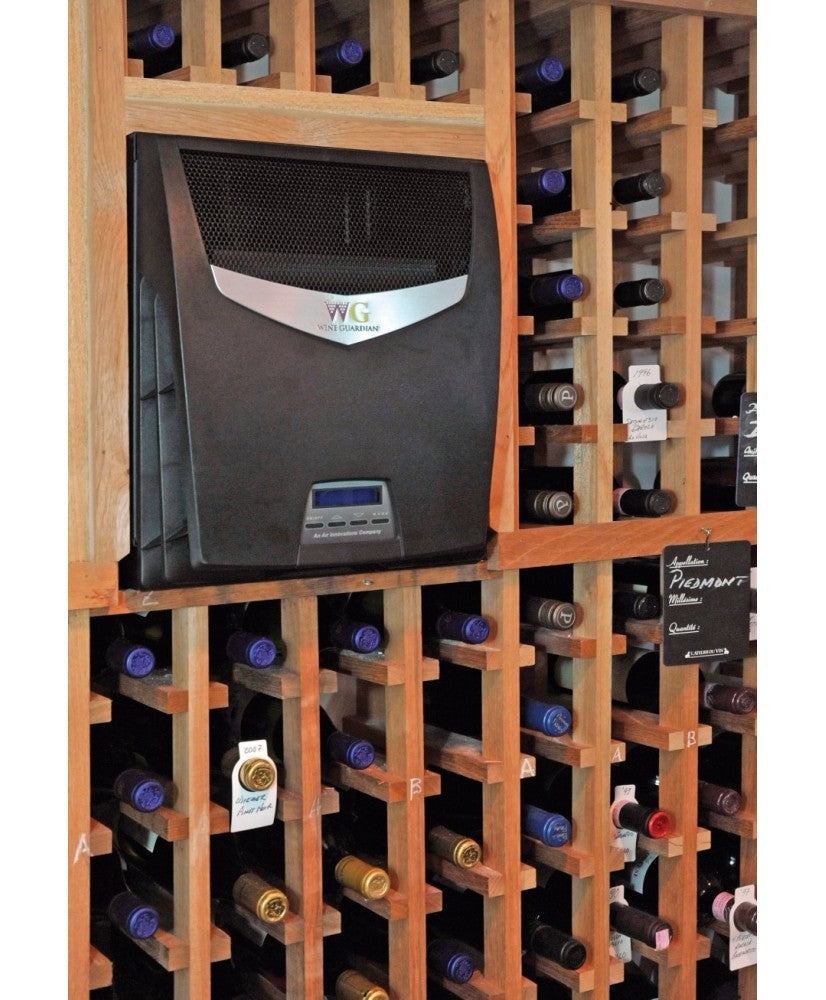

  • May be mounted flush with the wall or surrounding wine racks
  • Precise electronic temperature control

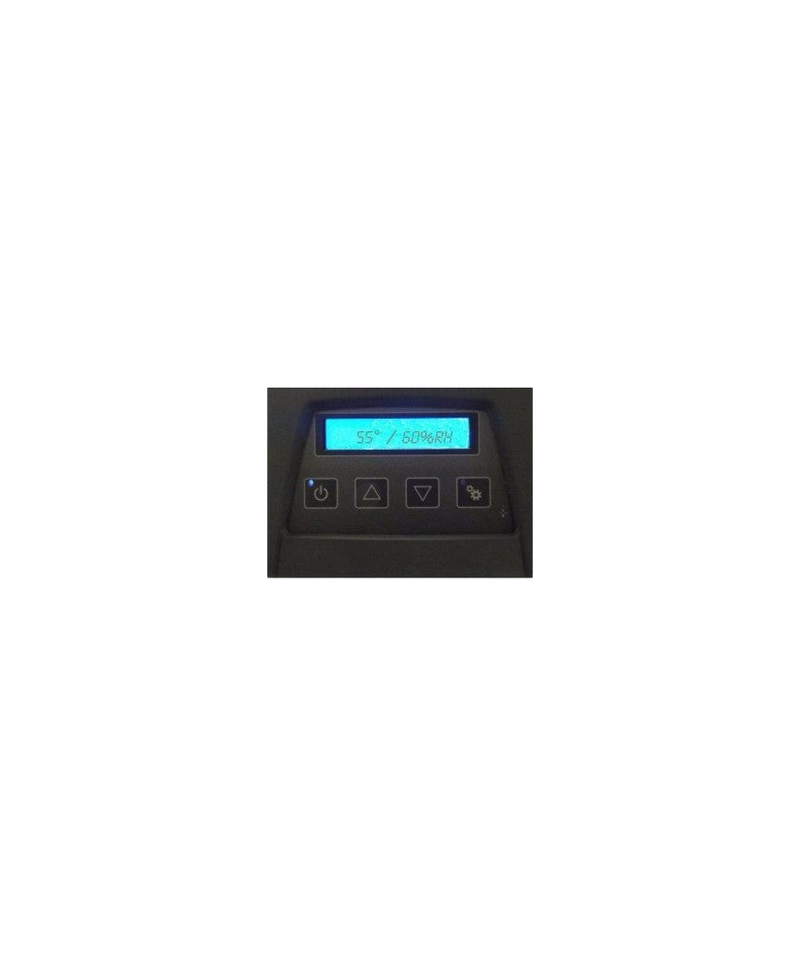

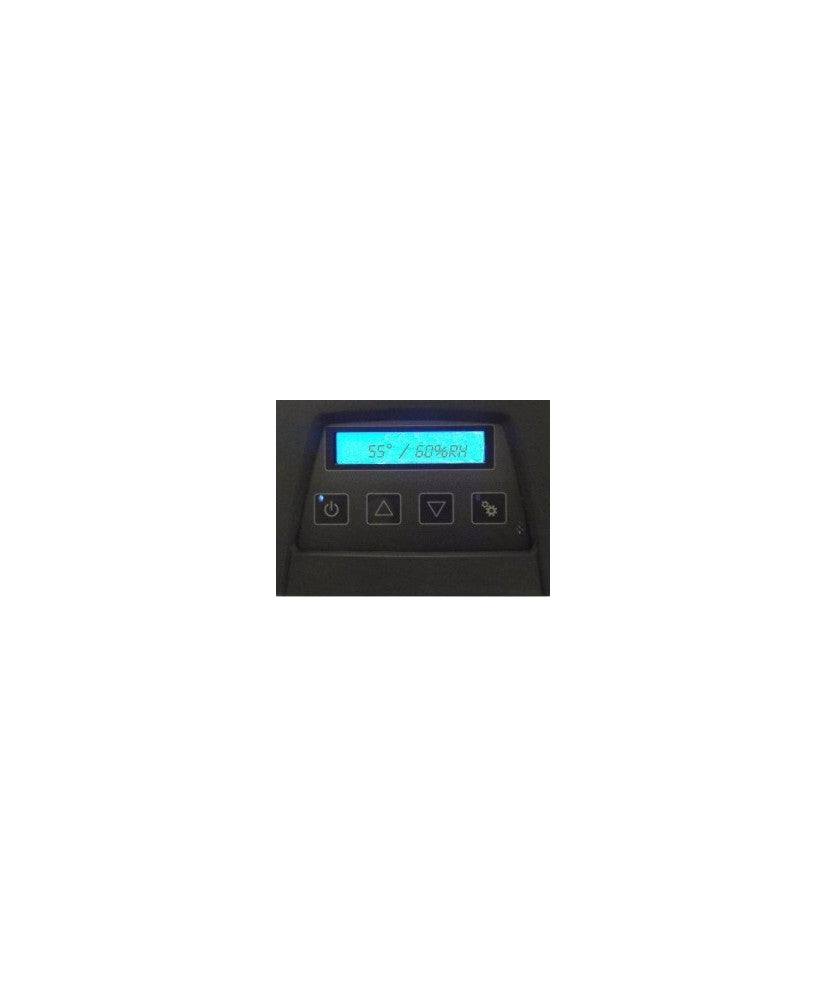

  • Digital display showing wine-cellar temperature and humidity
  • Specialized fans supporting even airflow
  • Adjustable louvers for directing air throughout the cellar
  • Designed for quiet operation
  • Integrated condensate-management system
  • Condensate overflow connection provided
  • Corrosion-resistant components
  • Durable aluminum chassis
  • Compatible with an optional Wine Guardian freestanding humidifier
  • Power-cord connections accessible from either side
  • Designed exclusively for interior installation
  • 115 V, single-phase and 60 Hz electrical supply
  • Dimensions: 25" L x 14.25" W x 15.88" H
  • Weight: 60 lb
  • Product number: 99H0240-12


The Wine Guardian TTW009H through-the-wall cooling unit combines self-contained cooling with an integrated 500 W heater to better protect small wine cellars exposed to seasonal temperature changes. Installed directly through an interior wall, it cools or heats the cellar according to detected conditions without requiring an outdoor condenser or refrigerant lines. Its digital display, adjustable louvers and specialized airflow contribute to stable conditions around the collection. This through-the-wall wine cellar unit with heat is particularly suitable for enclosed, properly insulated residential cellars located in cooler environments.

Performance 1 100 BTU/h
Capacity 850 ft³
Installation Wall-mounted

Transfer between stores

Talk to an expert In-store advisor
Experts en climatisation
Garantie 2 ans pièces, 1 an main-d'œuvre
Specifications
Performance (BTU/h) 1 100 BTU/h
Room capacity 850 ft³
Installation type Wall-mounted
Airflow 90 CFM
Heating element 500 watt
Drain 1/2" flexible
Electrical Dedicated circuit of 20 amps 115v/1ph/60Hz
Certification ETL & CSA
Dimensions
Product
H 15 7/8""
W 14 1/4""
D 25""
Weight
W 60 lbs lbs

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Wine Guardian

Wine Guardian

Wine Guardian has been a global reference in wine-cellar cooling since 1998. Made in Syracuse, New York, by Air Innovations, it joins a leader in environmental control with a deep commitment to wine preservation.

The full range — ducted, ducted split, ductless split and through-the-wall — covers every need, from a small private cellar to large commercial rooms. “Your passion is wine. Ours is preserving it.”

All Wine Guardian products are made in the United States and carry a 2-year factory warranty.

Wine Guardian

Wine Guardian warranty

Your Wine Guardian product is covered by the Wine Guardian warranty program.

2 years Parts
1 years Labor
