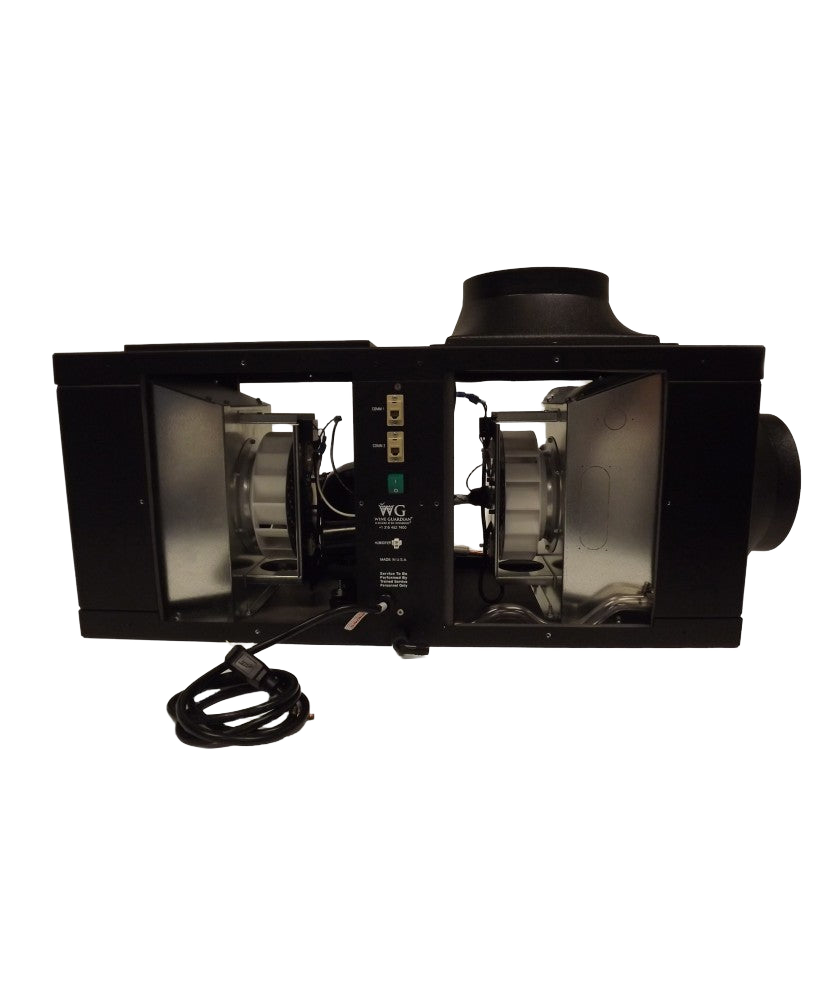

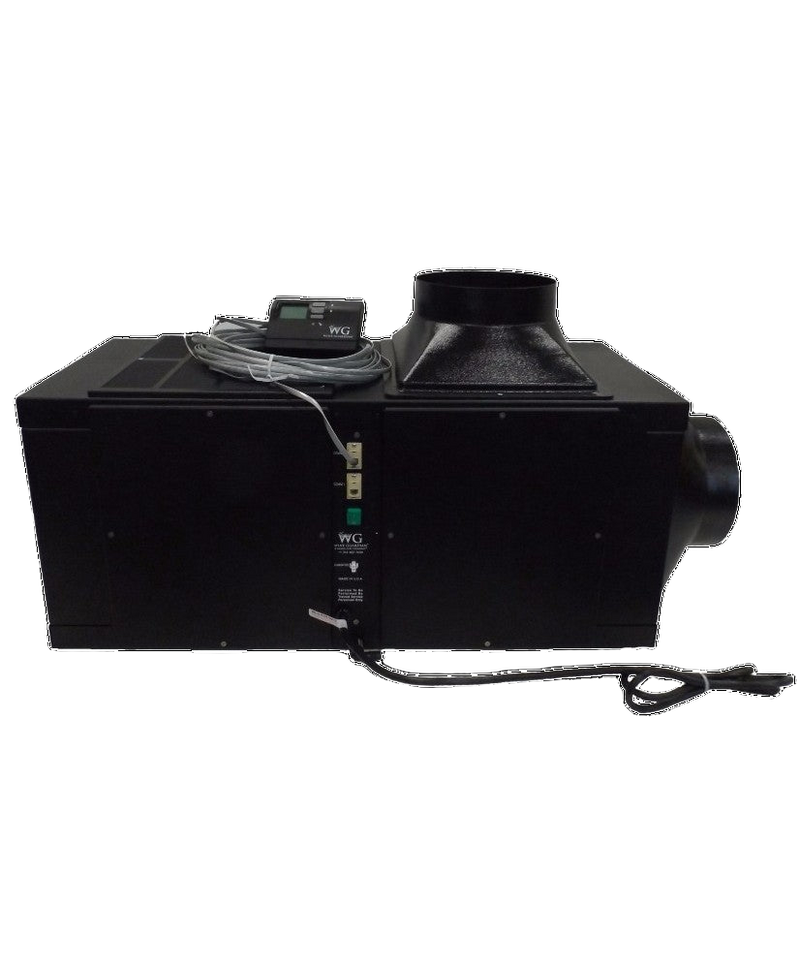

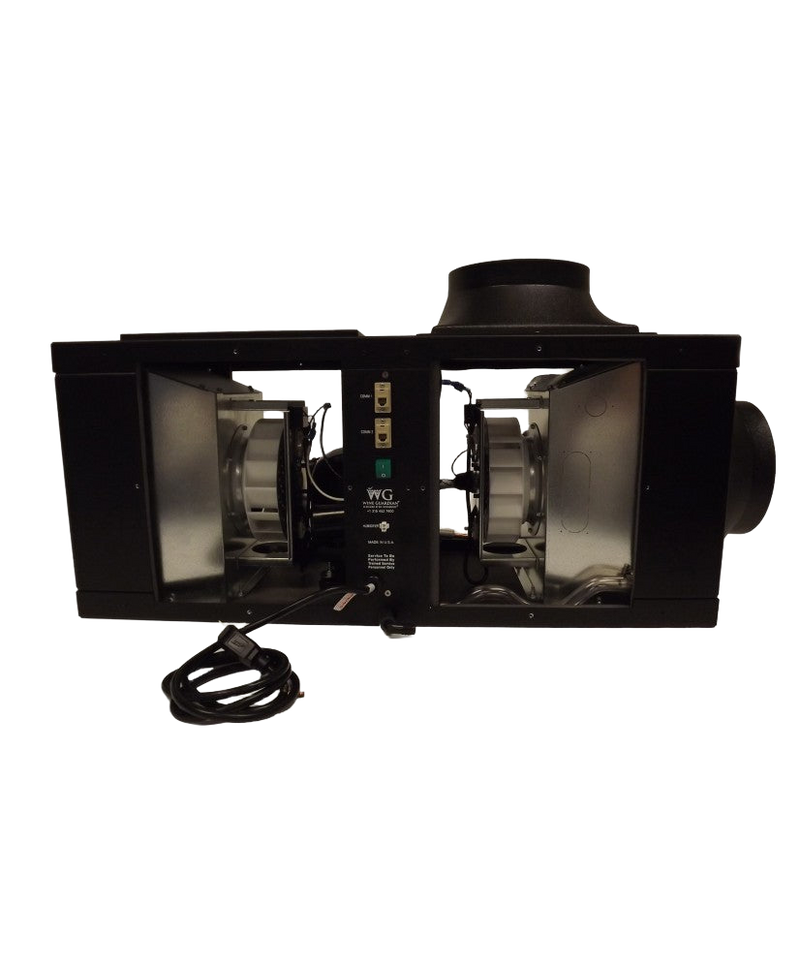

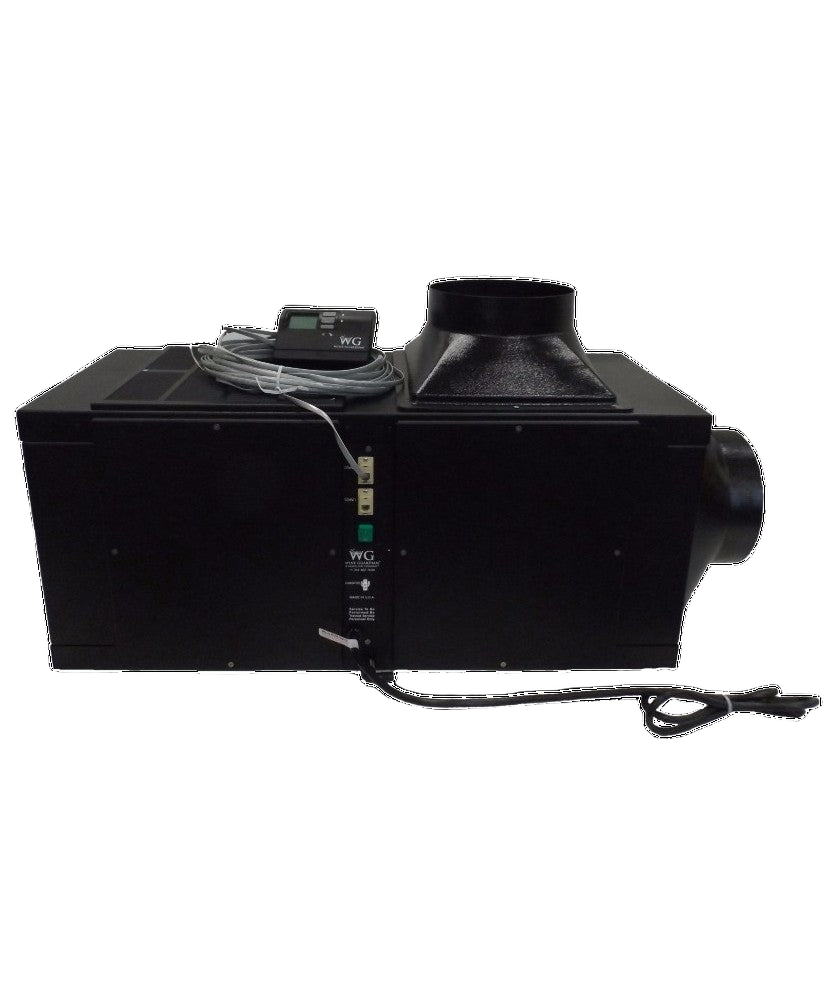

Wine Guardian | Ducted Compressor 3000BTU/h

Discreet and Efficient Cooling for Small Wine Cellars

The Wine Guardian D025 is a self-contained, fully ducted cooling unit that combines all principal components within a single system to maintain stable conditions in small residential or commercial wine cellars.

WHY CHOOSE THE WINE GUARDIAN D025 SELF-CONTAINED COOLING UNIT?

• Self-contained, fully ducted wine cellar cooling unit
• Base air-cooled configuration
• Cooling capacity of 3,760 BTU/h under the stated rating conditions
• Suitable for small residential and commercial wine cellars
• Indicative room-volume range from 250 to 2,000 cubic feet depending on the project’s heat load
• May suit small wine cellars containing a significant amount of glass
• Installs outside the cellar to keep mechanical equipment out of view

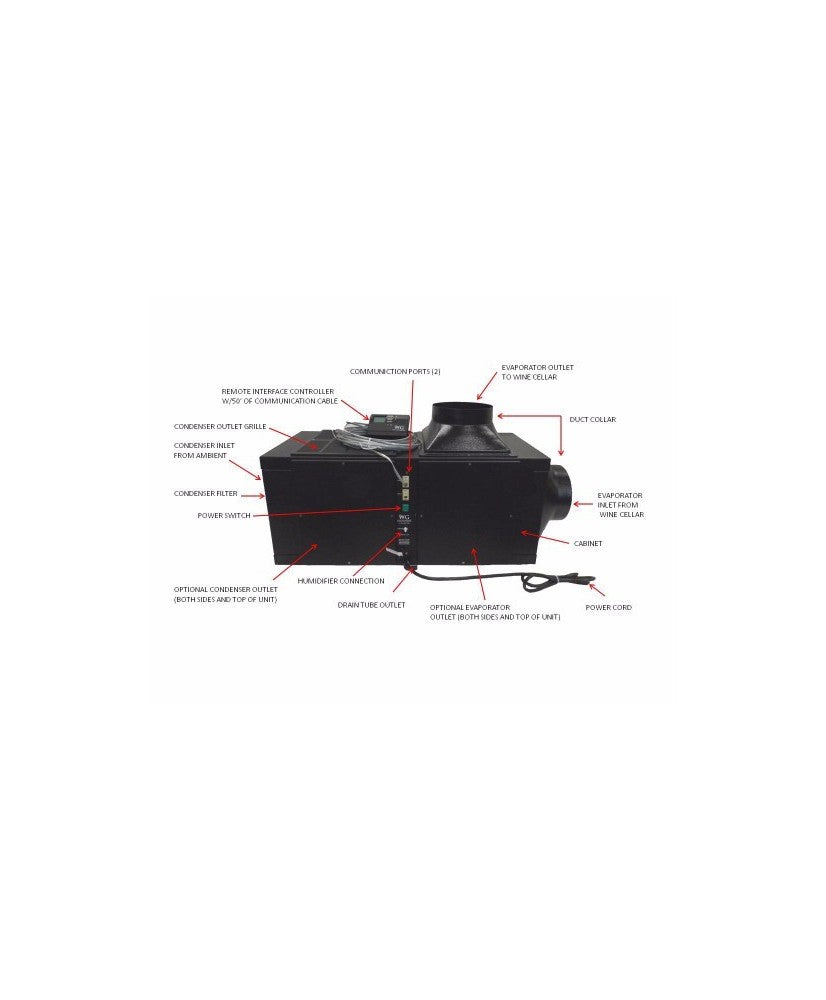

• Evaporator, fans, compressor, condenser and controls housed within a single unit
• Requires no refrigerant lines between separate system components
• Maintains standard wine-storage temperatures around 55°F to 58°F
• Precise digital electronic controls
• Published temperature accuracy of ±1°F
• Temperature and relative-humidity monitoring
• Rated evaporator airflow of up to 245 CFM
• Approximately 200 CFM of airflow at 0.10 inches of static pressure
• Internal insulation helping reduce temperature loss and condensation
• Coated evaporator coil supporting long-term durability
• Multi-panel construction providing convenient installation and component access
• Accessible components allowing field servicing and repairs
• Compatible with Wine Guardian remote controllers and sensors
• Supports up to three additional remote sensors
• Compatible with optional integrated or freestanding humidifiers
• Separate water-cooled configuration also available
• 115 V, single-phase and 60 Hz electrical supply
• Rated cooling-mode current draw of 7.1 A
• Uses R134a refrigerant
• Recommended minimum ductwork diameter of 10 inches
• ½-inch condensate drain connection
• Dimensions: 33.45" L x 16.6" W x 15.56" H
• Weight: 78 lb
• Installation by an experienced handyperson or contractor recommended
• Standard warranty covering parts for 2 years and labour for 1 year
• Product number: 99H0250-20

Maintain stable storage conditions with the Wine Guardian D025 self-contained cooling unit. This fully ducted system houses the evaporator, compressor, condenser and controls within a single unit installed outside the wine cellar. Its rated cooling capacity of 3,760 BTU/h makes it suitable for small residential or commercial cellars, including certain projects containing extensive glass. Digital controls, internal insulation and accessible multi-panel construction allow this ducted wine cellar cooling system to combine precise control, discreet integration and convenient servicing.
